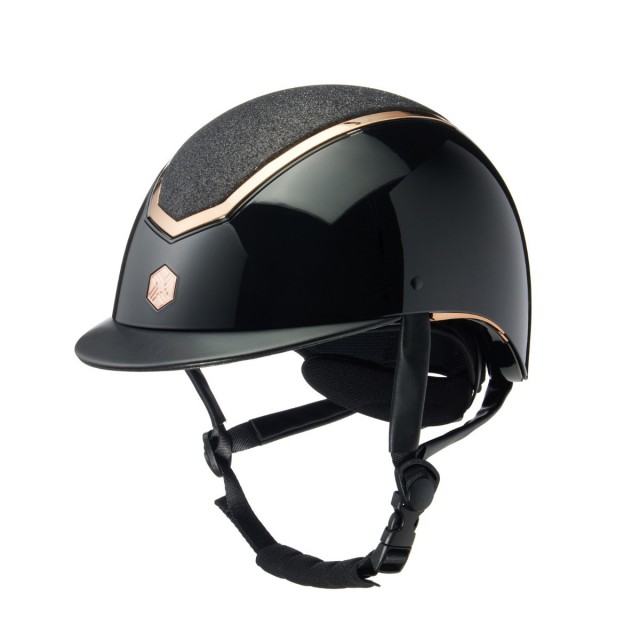

EQx Kylo Riding Helmet Standard Peak (Black Gloss)

How to fit a dial-fit helmet

Step 1: Measure up

·     Hair should ideally be worn in a low ponytail (if applicable).

·     Using a soft fabric measuring tape, wrap it around the widest part of the head (just under the occipital ridge).

·     It should follow a line just above the ear and about 1cm above the eyebrows to determine shell size.

Top Tip: Shells are universal fits (round and oval). If the customer is at the bigger end of the shell size for a round fit, choose a bigger shell for comfort.

Step 2: Fitting process

·     Place helmet on head and hold roughly 1cm above the eyebrow, at its loosest setting.

·     Whilst holding the peak in place, begin to slowly tighten the dial fixing at the back of the helmet until secure.

Top Tip: Please tighten your dial-fit carefully. Over tightening of the dial-fit mechanism when the helmet is being worn may cause the dial to lock. If this occurs, simply remove the helmet and release the dial.

·     Check the fit by gently pulling down on the peak or front of the helmet. The forehead skin should move with the motion of the helmet if it fits correctly. Independent movement from the helmet is indication the helmet is too big or the dial is not fastened tight enough.

·     Due to the dial-fit securing the helmet at the base of the skull (occipital ridge), a consistent contact around the perimeter of the helmet is not necessary.

Top Tip: Before removing the helmet, you should undo the dial. This helps prevent unnecessary stress on the dial fixing, and ensures you are securing correctly with every wear.

Step 3: Final steps

·     The chin strap should fit just under the chin and gently touch the bottom of the ear lobe, avoiding the throat.

·     There should be one fingers width between the chin and the chin strap. The gap between the chin and the chin strap is an indication of how far the hat could move in an accident.

Top Tip: When doing the chin strap up, place your finger between the strap and face to ensure you don’t pinch.

Sizing Foam Usage in EQx Kylo

We do not advise you use sizing foam at the back of the helmet. Any sizing foam added to the back of the helmet will interfere with the dial-fit system and reduce its effectiveness.

Sizing foam could be added to the side of the helmet if required, however, we would not recommend this if your helmet has MIPS, as sizing foam will also reduce the effectiveness with the MIPS technology.

Further helmet fitting training can be found on our Teachable platform, where our helmet fitting experts explain easy step by step processes for fitting and more! www.charlesowentraining.com
